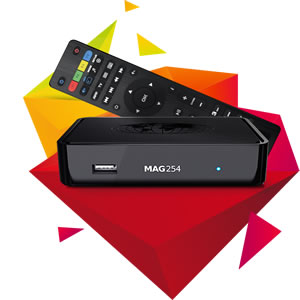

MAG254 W1 IPTV SET-TOP BOX (BUILT IN WIFI)
MAG254 W1 IPTV SET-TOP BOX (BUILT IN WIFI)
  (Enlarge)
Units will be shipped with regionally adapted power supplies.

No subscriptions, TV channels or any other video/audio content will be provided with purchasing of the unit.



MAG 254/255 is a powerful Set-Top Box with efficient processor STiH207 and increased RAM memory, and it is an optimal solution for IPTV/OTT projects. The Set-Top Box is designed to fulfill business projects of internet providers, OTT operators and content aggregators. The increased productivity of MAG 254/255 enables to use resource-intensive interactive applications and support 3D-video.
STiH207 650Mhz, Linux 2.6.23, Composite AV, HDMI 1.4, USB x 2, S/PDIF, LAN, WiFi Ready

Specifications

Dimensions
Width/depth/height, (mm): 127/87/30
Weight, g: 190
Hardware
Processor: STiH207
RAM: 512 Mb
Flash memory: 256 Mb
Software
Operating system: Linux 2.6.23
  Built-in Media Portal with WebKit-based IPTV-functionality HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
DRM option: Secure Media, Verimatrix (MAG255)
Middleware supported: Stalker, Netup, SmartLabs, Netris, Beenius
Interfaces
  Audio output S/PDIF HDMI 1.4-output Composite + stereo A/V output Ethernet 100 Mb/s USB 2.0 (WiFi-adapter can be connected)
Sources of media content
  PC and NAS in local network Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP) USB-devices
Audio&Video
Audio codecs: MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), MPEG-2 AAC (optional), MPEG-4 AAC LC 2-ch/5.1ch (optional), MPEG-4 AAC+SBR 2-h/5.1ch (optional), Dolby Digital (optional), DTS (optional)
Audio formats: MP3, MPA, M4A, WMA (optional), Ogg, WAV, AAC
Video modes: 1080i, 1080p, 720p, 576p, 480?, PAL, NTSC
Video codecs: MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; 3D and HD video supporting (up to 40 Mbit / s and above)
Video containers: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats: JPEG, PNG, BMP, GIF, RAW
Subtitles: DVB, SRT, text MKV
Playlist formats: M3U
Standard set
  MAG254/255 Set-Top Box, user manual, Mini jack cable to RCA (A/V), Power adapter 12V 1A, remote control, 2 AAA batteries, packaging


Email Friend
Price: $100.00
Out of Stock
